Complete 1965 Gibson Patent Number sticker PAF pickups wiring harness pots jack
Taken from a 1965 Gibson ES guitar is this untouched unsoldered complete wiring harness with the following parts all attached and 100% working:

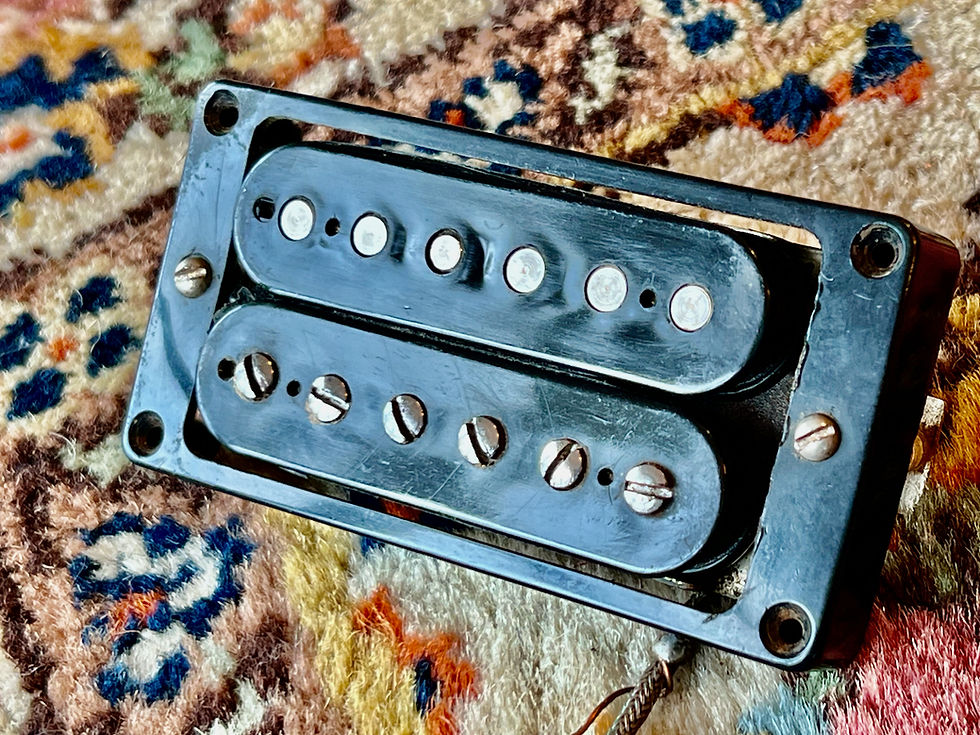

2 x purple wire Patent Number Sticker PAF Humbucking pickups incl chrome covers (1 x never been off, the other taken off to check the humbucker)
2 x black humbucker pickup rings M491

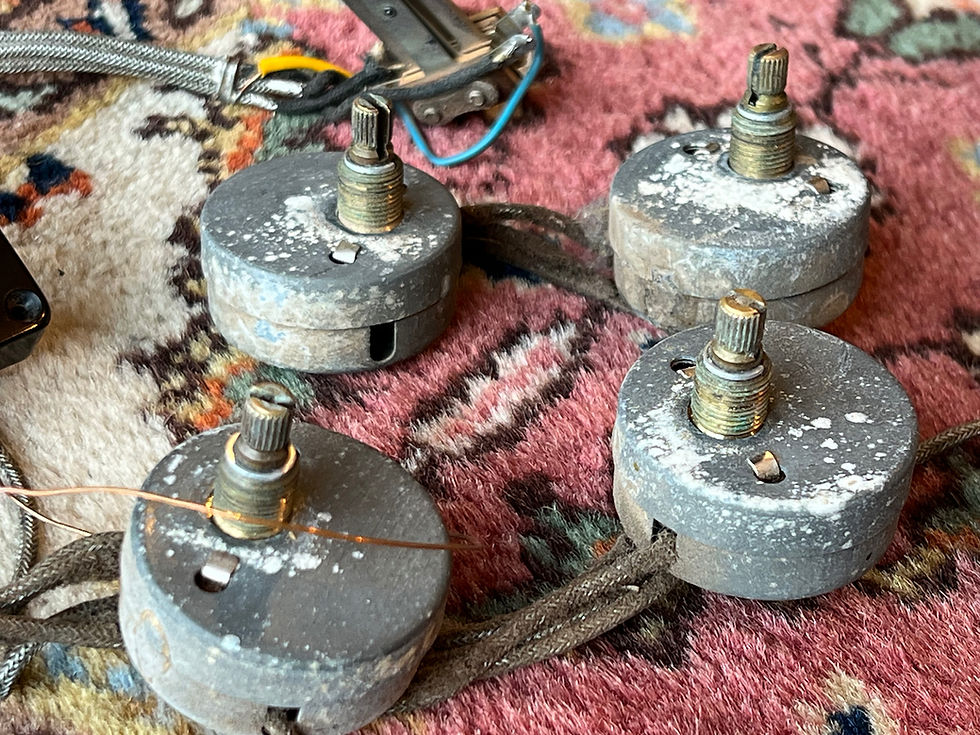

4 x pots still in the can, solder untouched
1 x Switchcraft jack output in the can, untouched solder
1 x Switchcraft switch with untouched solder
1 x copper groundwire still in full length soldere to the harness next to the pickup
If you are restoring a 1965 Gibson ES guitar you can pop this straight in and you have a complete untouched harness in there!
The Patent Number sticker pickups measure 7.68K/8.53K Ohm and are the earliest version which are almost exactly the same as the legendary 1959-1960 PAF pickup! Long 2.5" rough cast Alnico magnets, square in circle, black/white bobbin leads, purple PAF enamel coated bobbin wire, "L"-tool marks, "circle in square" bobbin opening, bullseye slugs, Philips bottom screws, 2 strand braided lead wire, sticker and butyrate lights up perfect in UV blacklight. Full Les Paul spaced so NOT "Archtop" or "narrow" spaced.
